HVAC

      HVAC system i.e. Heating, Ventilation and Air Conditioning is the core subject of any pharmaceutical facility It is designed to conform to the environment classifications and cGMP standards as per the product requirements The detailed engineering of HVAC is based on the preliminary concept note finalized and agreed upon by the Project team for AHU groupings, room pressure gradients, room temperatures, humidity levels, room classifications and air changes

  • HVAC Design Philosophy.
  • AHU Grouping
  • Area Classification
  • Pressure Gradient
  • HVAC Room Book
  • Heat Load Calculation
  • Design summary sheet

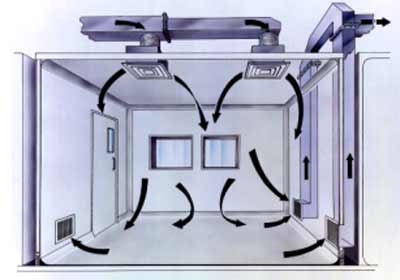

  • Air Flow Diagrams
